Thermal fuses

The temperature fuses of the various series automatically open the circuit of the connected device when the rated switching temperature is exceeded and must be replaced as a whole after the triggering.

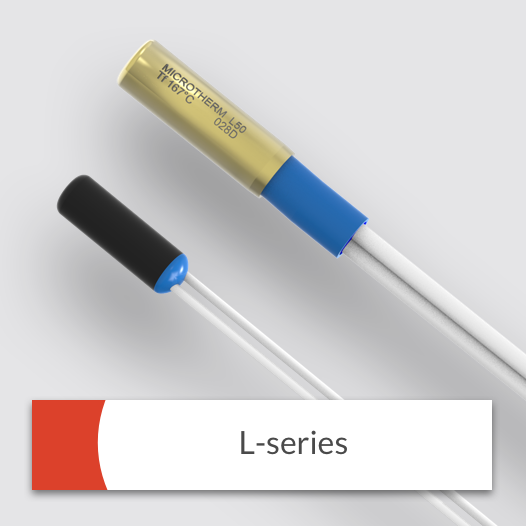

Alternativer Text

Temp. range: 71 - 240°C
Current rating: up to 25 A

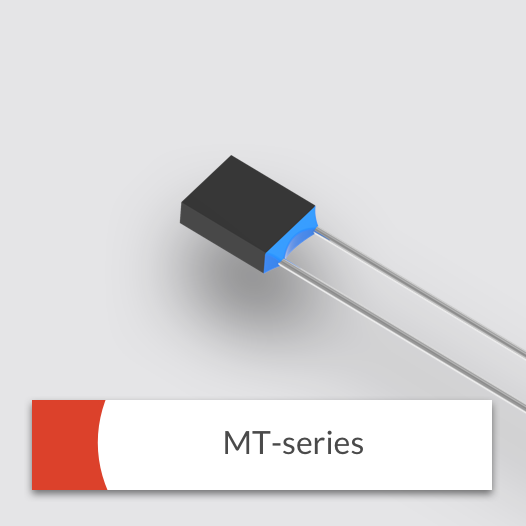

Alternativer Text

Temp. range: 66 - 240°C
Current rating: up to 25 A

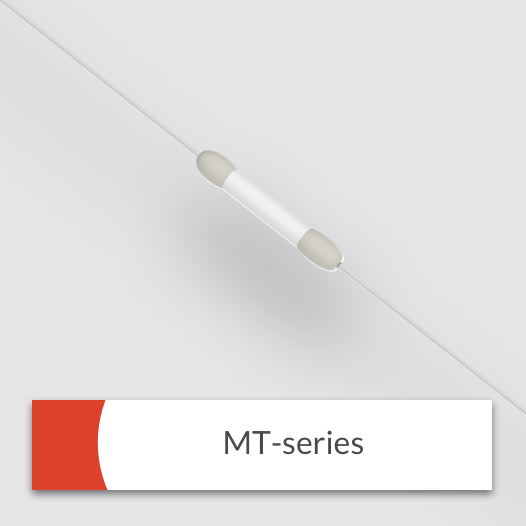

Alternativer Text

Temp. range: 65 - 145°C
Nennstrom: up to 5 A

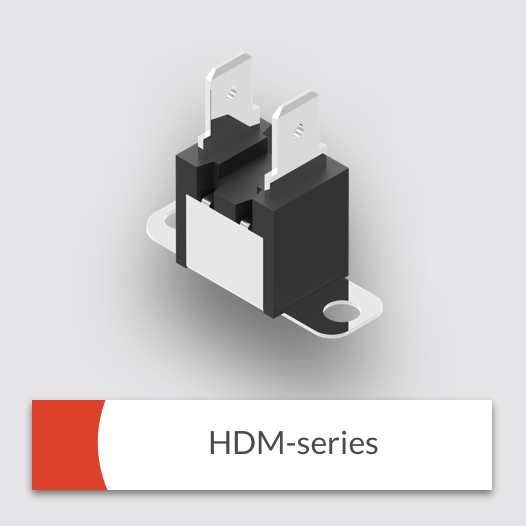

Alternativer Text

Temp. range: 65 - 150°C
Current rating: up to 3 A / 20 A

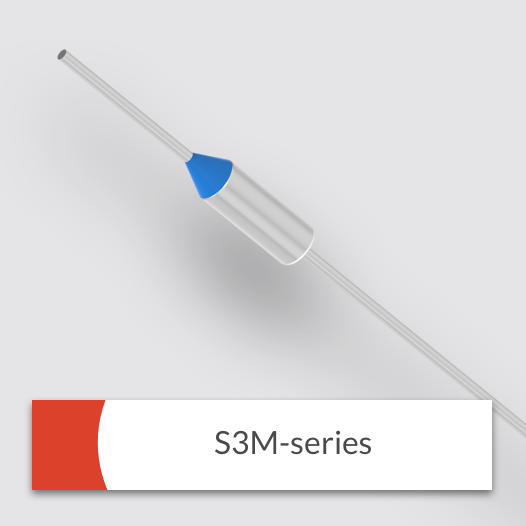

Alternativer Text

Temp. range: 78 - 190°C
Current rating: up to 15 A

General information

Thermal fuses

The temperature fuses of the various type series each have a melting blow-out element: either an organic melt pellet or a melting alloy. Thereby, the current load capacity is up to 25 A, and the maximum triggering temperature is up to 240°C.

We supply the fuses as individual elements, as well as in a customer-specific form.

When handling fuses during installation and use, the instructions and characteristics must be observed. An example of this is the maintenance of the holding temperature TH.

Temperature protection devices are used in household appliances, electrical (small) appliances, heaters, transformers and in the automotive sector.

Characteristics
  • Small, compact housing
  • Broad product and application spectrum
  • Dust-tight design
  • Design of customer-specific variants
Functions
  • Protection against overheating
  • Signal encoder
Application areas
  • Stoves
  • Cooking devices
  • Immersion heaters
  • electric. grill
  • Fryer
  • Waffle makers
  • Iron
  • Water heater
  • Coffee machines
  • Boiler
  • Hot water storage
  • Hairdryer
  • electric. tools
  • Refrigerators
  • Lightning protection
  • Accumulators
