Open temperature switches / current switches or time switches (A / D series)

Type series A and D switches are used for the temperature and current Monitoring.

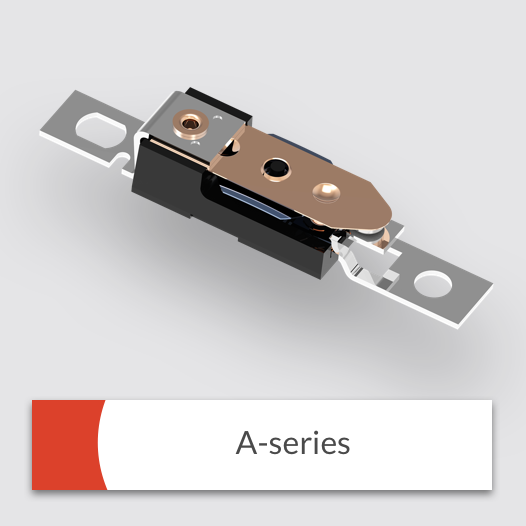

Alternativer Text

Temp. range: 70 - 160°C
Current rating: up to 16 A

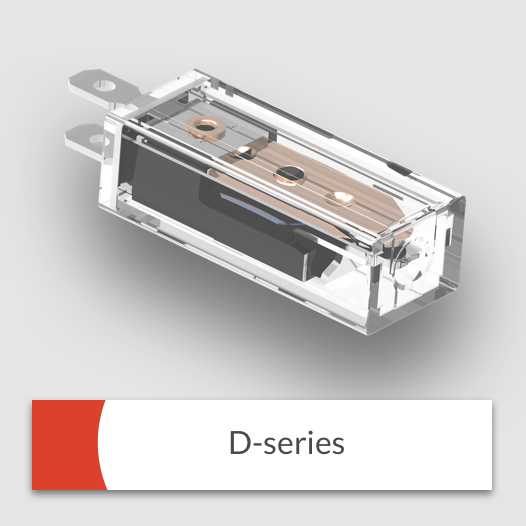

Alternativer Text

Temp. range: 70 - 160°C
Current rating: up to 16 A

General information

Open temperature switches / current switches or time switches (A / D series)

They are characterized by their variable function: in addition to the automatic reset, these switches offer the possibility to perform a manual reset, and an electrical self-retaining.

In particular, the non-housed variants can be operated in combination with a ventilation system in the superheated state. When the cooling airflow is interrupted (through a blockage of the fan motor or a covering of the device), the switch triggers very rapidly and prevents damage.

Typical applications include a wide range of domestic appliances (dryers, cooking appliances, heaters, etc.), automotive and electronic applications. There are numerous connection options: Plug, rivet, screw, welding or soldering Connections.

Characteristics
  • Added security through electr. self-retaining
  • Manual reset
  • Various housings
  • adjustable current sensitivity
  • Response times according to customer requirements
  • PCB connections (SMD, THT)
Functions
  • Thermal motor protection
  • Controller
  • Limiter
  • Safety switch
Application areas
  • Domestic appliances
  • Dryer
  • Cooking devices
  • Radiant warmers
  • Heaters and heating Elements
  • Heaters
  • Automobile: Wiper motors, window lifter motors, electr. seating position
