Temperature sensors and Thermistors
Components of these series are used in the field of temperature measurement. The measuring result or the sensor signal is used to initiate a protection function, or to display the measured temperature.
Response temperatures: 80 - 180°C
Temp. range: -40 - 170°C
Temp. range: -40 - 180°C
Temperature sensors and thermistors (PTC, NTC, STS, PT1000, et cetera)

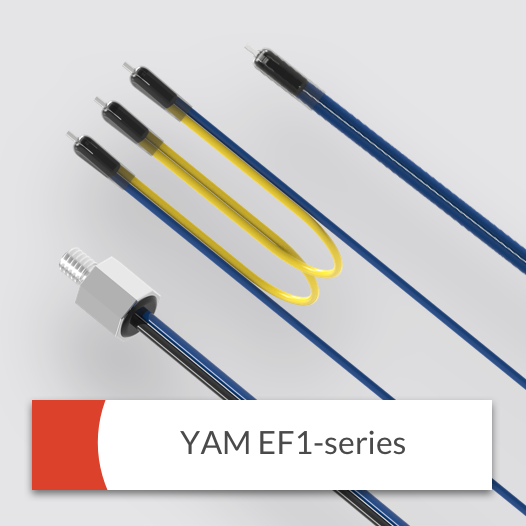

Temperature sensors of the YAM / EF1 type series are the PTC thermistor or the motor PTC, which are characterized by a sudden increase in resistance at a def. response temperature.
Temperature sensors of the NTC type series describe a negative characteristic curve for an increasing temperature. They are often used as a favourable basis for the temperature control of a device.

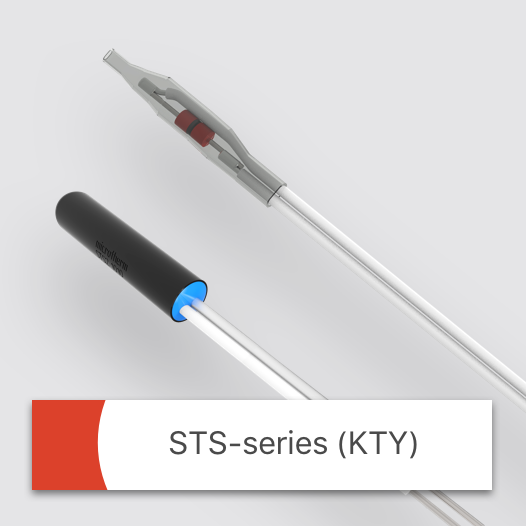

Sensors of the STS type series are characterized by a temperature curve which is very similar to the (already partially terminated) KTY sensors, and offer an alternative solution.

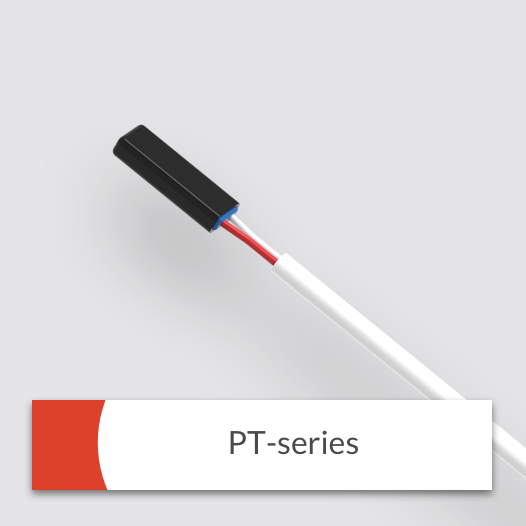

The wide field of PT sensors is characterized by a very precise temperature characteristic curve across a wide temperature range. These sensors are designed customer-specific with hardly any exceptions.
- jerky and linear sensor characteristics are possible
- small installation space, therefore short reaction times
- diverse customer-specific designs
- precise temperature measurement
- Thermal protection
- Temperature measurement as a basis for the controlling
- PTC thermistor for motor protection and electronic applications
- Electric Motors
- Domestic appliances
- Boiler and water heater
- Coffee machines
- Mechanical Engineering
